Custom Engineering &
Tailored Mixing Systems.
Bespoke planetary agitator design, vacuum chamber engineering, and automated mixing skid solutions built to your process specs.

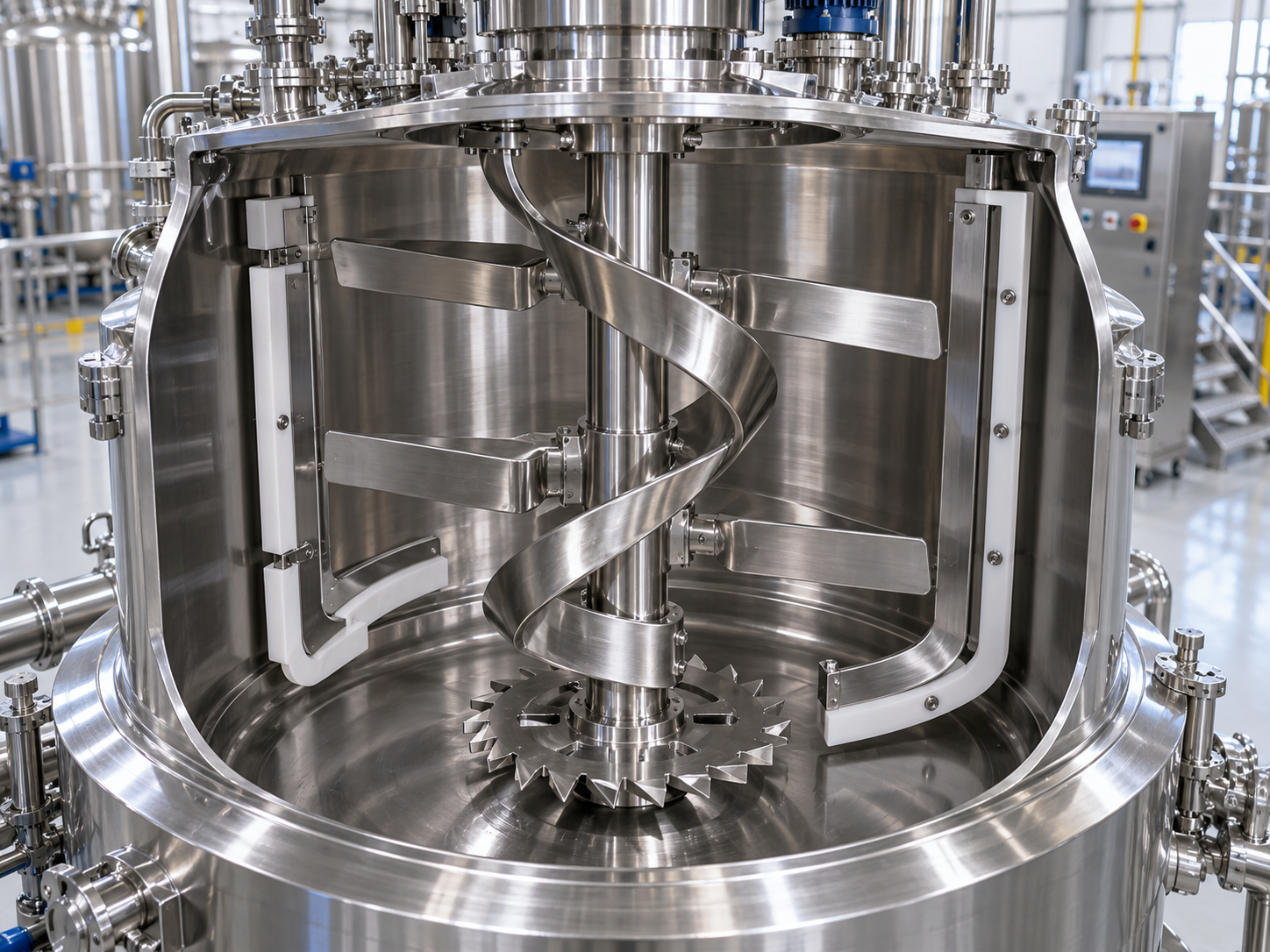

Bespoke Blade & Impeller Configurations
Standard mixers often create dead zones or excessive shear heating in non-Newtonian materials. Ruijing customizes 5-axis CNC machined helical twist blades, double-paddles, anchor scrapers with PTFE wall-wipers, and twin high-shear saw-tooth dispersion discs.
- ✓ Variable helical twist angle for optimized axial turnover
- ✓ PTFE or bronze wall-wipers for zero vessel wall accumulation
- ✓ Ceramic or tungsten carbide coatings for zero metallic contamination

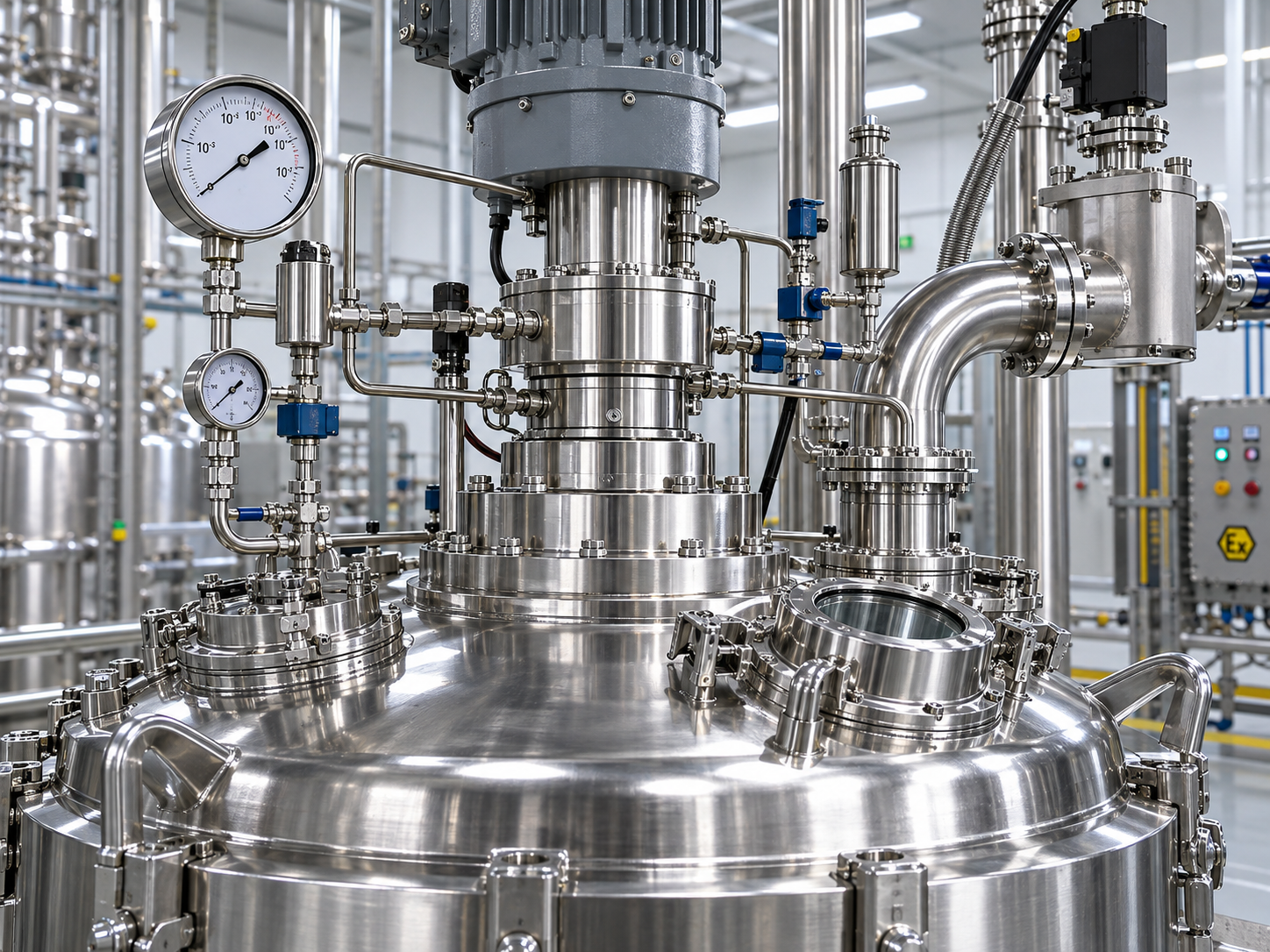

Deep Vacuum & Multi-Stage Mechanical Seals
Eliminate micro-bubbles and volatile solvent vapor leakages. We design pressurized gas-purged double mechanical seals rated for continuous deep vacuum (-0.098 MPa) and positive pressures up to 0.6 MPa.
- ✓ 100% helium leak tested seal housings before shipment
- ✓ Dual-face mechanical seal with inert lubricant flushing circuit
- ✓ Explosion-proof (ATEX / EX-d) compliance for solvent processes

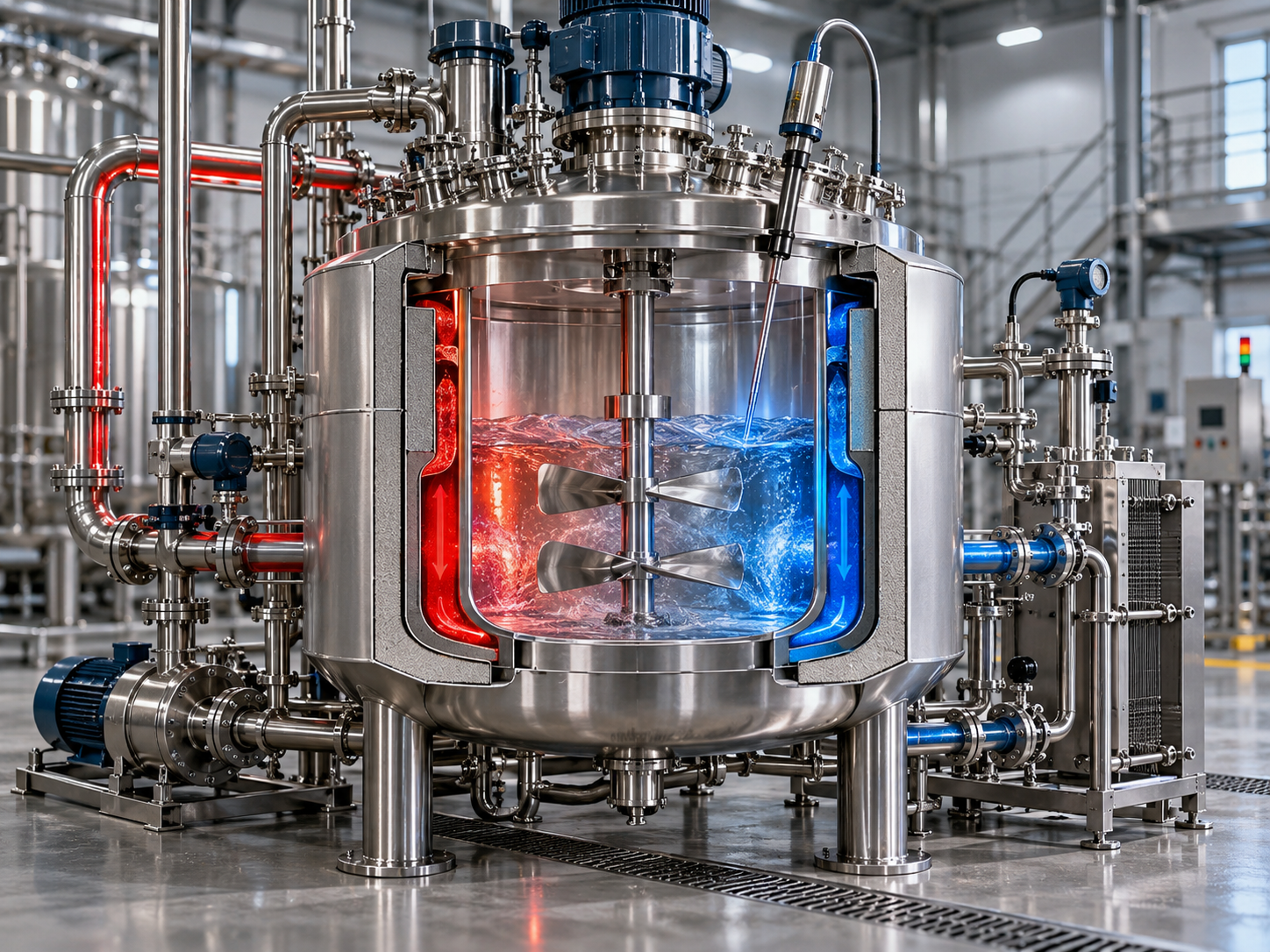

Precision Heating & Cooling Jackets
Exothermic reactions and shear heating can spoil high-value lithium or silicone formulations. Ruijing customizes dimple jacketed, baffled spiral, or electric resistance vessel heating from -20°C up to +280°C with ±1°C accuracy.
- ✓ Internal vessel temperature probe embedded inside mixing blade
- ✓ Multi-zone fluid circulation jackets for uniform heat transfer
- ✓ Insulated stainless steel outer cladding for operator safety

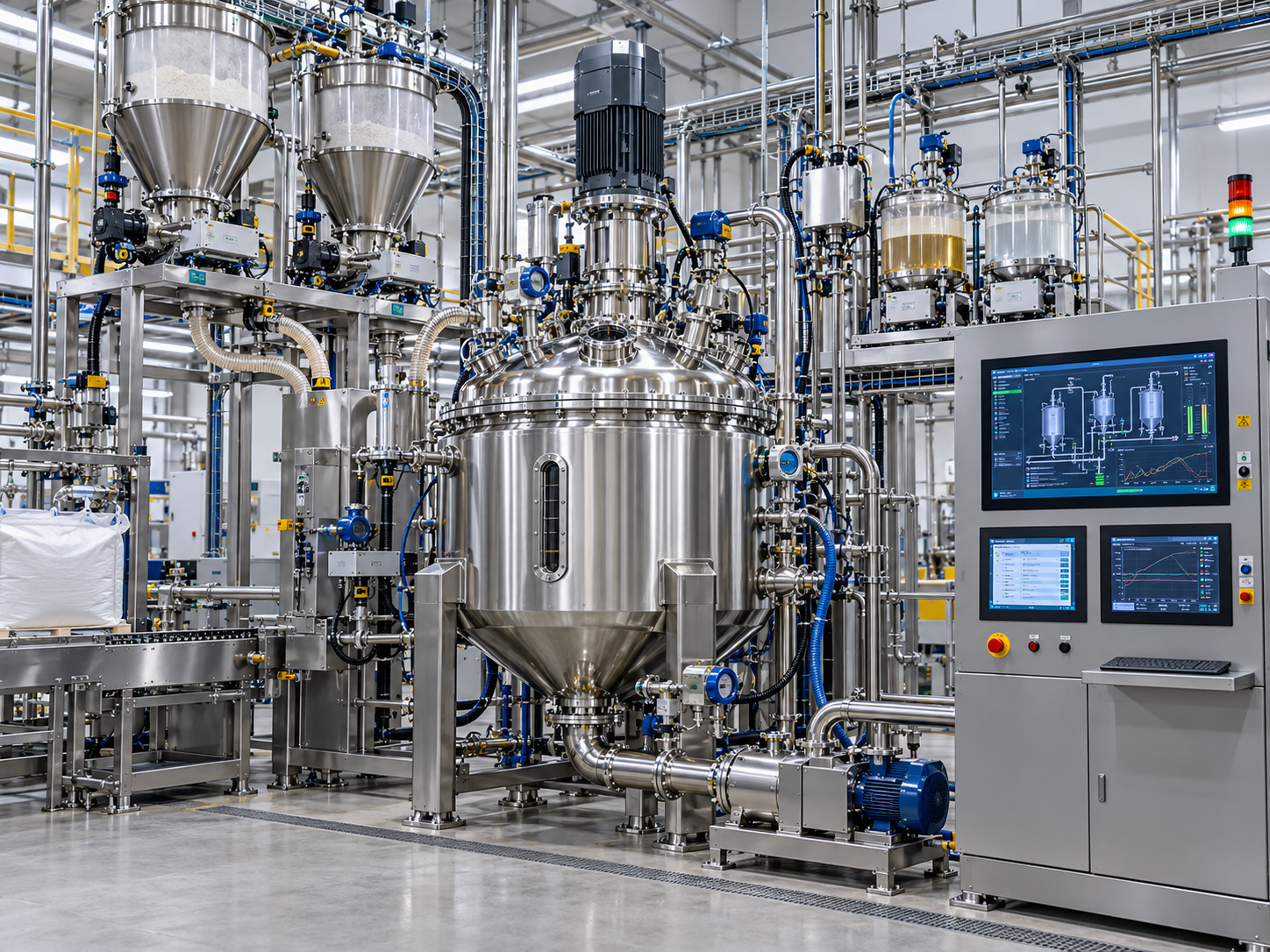

Automated Powder Feeding & SCADA Integration
Integrate closed-loop continuous powder suction, loss-in-weight liquid metering, and real-time viscosity feedback into your factory MES. We engineer control panels with Siemens S7-1500 or Allen-Bradley PLCs.
- ✓ Custom HMI touchscreen software with recipe store & data logging
- ✓ Loss-in-weight dosing feed for continuous slurry production
- ✓ Remote diagnostics and real-time motor torque monitoring
From Material Trial to Turnkey Commissioning
Structured 5-step engineering workflow guaranteeing sub-millimeter precision, zero contamination, and validated batch repeatability.
Rheology & Process Audit
Viscosity audit up to 2.5M cps & vacuum degassing targets.

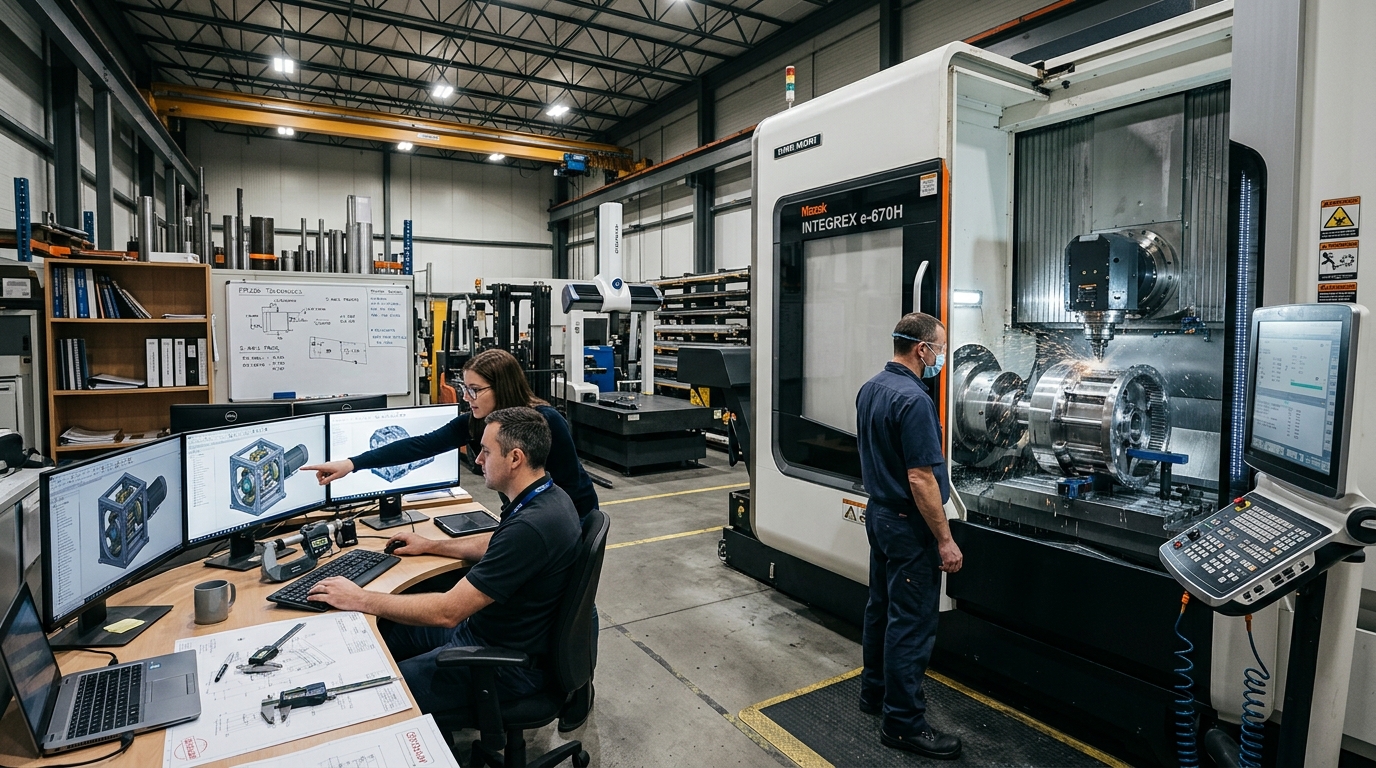

Blade Geometry & 3D CAD
5-axis CNC twist modeling & thermal jacket CFD flow.
R&D Application Lab Trial
2L–10L batch trial to verify zero dead zones & cooling.
Cleanroom Assembly & FAT
Class 10,000 assembly & 72h helium leak inspection.
Turnkey SAT & Commissioning
Global on-site setup, SCADA MES link & lifetime SAT.
Ready to Engineer Your Custom Mixing System?
Send your material rheology specifications, desired batch capacity, and vacuum requirements to our senior process engineering team.
